이름: | 공장 가격 304 스테인레스 스틸 쐐기 철망 체 굴곡 스크린 필터 노즐 | 보증: | 6개월 |
---|---|---|---|
두께: | 3-12mm | 너비: | 6M 이내 |
길이: | 6m | 슬롯: | 0.02-0.3MM |
원래 장소: | 허베이, 중국 | 사용: | 액체 및 고체 필터링 |
종류: | 필터 엘리멘트 | 구멍 모양: | V형 |
표면 유선: | 프로파일 와이어 | 적용: | 액체 및 고체 필터링 |
지지 로드: | 정사각형, V선, 둥근 선 | 프레임: | 요구조건에 따르면 |
표면 처리: | 닦습니다 | ||
강조하다: | 304개의 스테인레스 강 쐐기형 와이어 스크린,L6m 스테인레스 강 쐐기형 와이어 스크린,L6m 웨지 와이어 필터 |

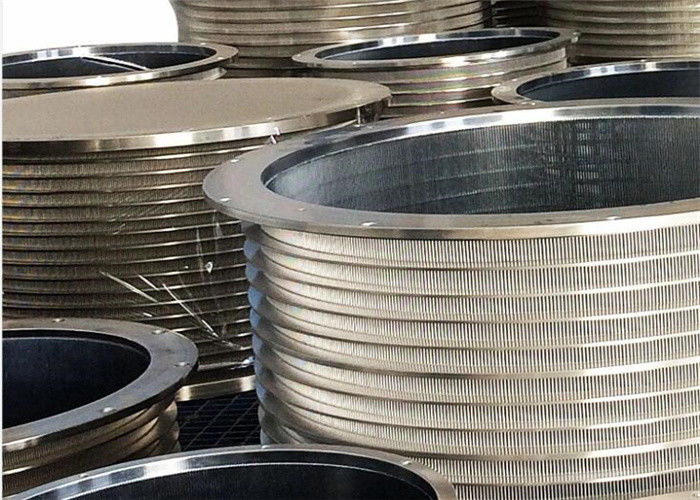

Factory Price 304 Stainless Steel Wedge wire screen sieve bend screen filter nozzle
Stainless Steel Wire Wraped Slot Screen Wedge Wire Mesh, Stainless Steel Slot Screen Sieve Panel For Paper and Pulp, The stainless steel v wire screen plate is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Features
1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||||
Length Range | Up to 6000mm | |||||||
Width Range | Up to 6000mm | |||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | |||||||
Other Shapes | Could cut to any shape according to requirement, such as round, semicircle, sector | |||||||
Wedge Wire |
|
|||||||
Support Rod |
|
|||||||
End Finishing | With the frame, without any frame, according to request |
